Mineral Water PET Bottle 200ml Washing Filling Capping Machine Water Bottling Plant

Name: Mineral Water PET Bottle 200ml Washing Filling Capping Machine Water Bottling Plant
Brand: Sunrise
Price: 1 USD

China Mineral Water PET Bottle 200ml Washing Filling Capping Machine Water Bottling Plant wholesale

Brand Name : Sunrise

Certification : CE

Place of Origin : Jiangsu, China

MOQ : 1

Price : According to the project

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,

Delivery Time : 180 days

Packaging Details : wooden case or wooden base

Model Number : KSCGF

Processing Types : Automatic Bottle Filling Sealing Machine

Type : Filling Machine

Application : Water,Beverage

Machinery Capacity : 8000BPH, 6000BPH, 2000BPH, 1000BPH, 10000BPH

Capacity : 9000-10000BPH

Product name : Water Filling Machine

Packaging Type : Bottles

Automatic Grade : Automatic

Voltage : 380V/50HZ/customize

Weight : 4000 KG

Condition : New

Filling Accuracy : ±2ml

Control : PLC+ Touch Screen

Filling nozzles : 32 nozzles

Filling range : 200-2000ml

Filling Material : Beer, Milk, Water, Oil, Juice

Bottle type : PET Plastic Bottle

Dimension(L*W*H) : 3000*2100*2550mm

Contact Now

A To Z Automatic Drinking Water Producing Bottling Filling Machine Line

What makes a complete water line?

The whole line contacts 5 main parts:
Bottle blowing machine
Water treatment sytem
Water bottle washing filling and capping three in one machine
Labeling machine
Shrink Packing machine

1.Bottle blowing machine
To Blow the preformers to be bottles.

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used
 to produce the carbonated bottle, mineral water, oil bottle, and hot fill bottle etc.Sunrise supplies blowing solutions from 8000BPH to 36000BPH

2.Water treatment sytemto produce mineral water or pure water from well,lake,river and other source water

Mineral Water PET Bottle 200ml Washing Filling Capping Machine Water Bottling Plant

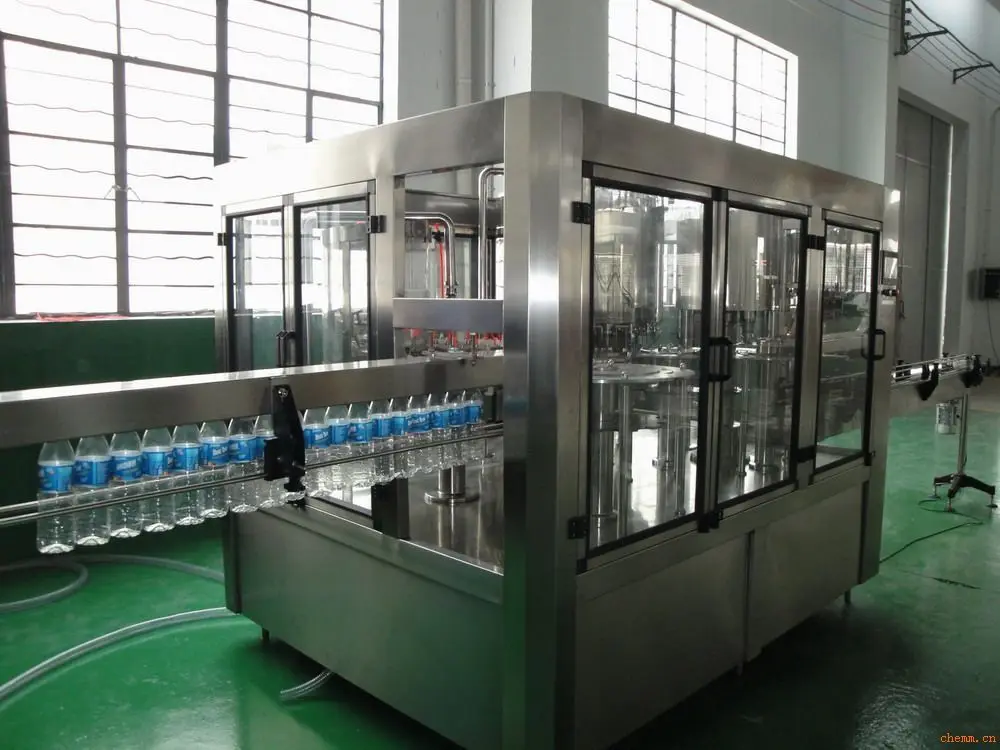

3.Water bottle washing filling and capping three in one machine
to wash the bottles ,fill drinking water into bottles,seal bottles with caps

Full Automatic 3 in 1 Complete PET Bottle Pure Mineral Water Filling Production Machine
 This automatic rinsing, filling and capping machine, could be applicable quantitative filling and capping of drinking
 water,mineral water,Pure water. It has functions as follows: Disinfectant rinse, aseptic water rinsing; automatically i liquid
 filling tank, inlet material;

Model	KSCGF06	KSCGF08B	KSCGF32A	KSCGF40A	KSCGF60A
Speed	10000BPH	12000BPH	20000BPH	24000BPH	32000BPH
Main Power	5kw	5kw	7kw	9kw	11kw

5. Labeling Machine

This bottle labelling machine is equipped with SS304 cover and aluminumalloy structure. It is suitable for the round bottle,square bottle, oval bottle.
 Servo motor controls cutting operation to last the blade service time and make label more accurate. It owns automatic computer
 control, automatic detection, automatic positioning, fast label replacement, accurate label cutting, colour HMI with English and
 other characteristic.

6. Shrink Wrapper Packaging Machine

The machine is developed especially for mineral water, beverage, wine, beer, product and soon.
 Infusion medicine bottle combination packaging, with stable function, and the packed articles.
 Tight and orderliness. It can be handled as a single pushing machine when high speed demanded.

Air Conveyor

This conveyor is mainly used to convey empty PET bottles form bottle blowing machines or bottle sorting machines to filling machines. The air inside is filtered and make the bottles clean. The conveying speed and efficiency is high and can meet the requirement of high speed filling machines. It has no damage to bottle body. The arrangement form is flexible and includes
 horizontal transmission, vertical transmission and turning transmission.

Siemens Air Fan with Adjustor

The wind blowing port is made of 1.5mm thick stainless steel 304 plate. It uses standard steel stamping molding and then bending and welding.The guardrail of bottles uses standard aluminum alloy with PE material sheath.The standard model is M-746.
 The fan uses centrifugal fan (model Y90L-2) equipping with tmedium efficiency filter to ensure that the bottle mouth is clean.

Belt Conveyor for PET Bottles

Flexible conveyor parts including: flexlink drive and idler units, horizontal and vertical wheel, aluminum conveyor beam, support base, different size and chains and other conveyor accessories.
module design: save space; nice-looking; linght-weight; easy maintenance
high efficiency and reliable
transportation safely.
long service life
downstairs vertical transport
flexible design: convey flexiblely, easy to turn and climb
conveying speed is fast
cost is effective and favorable

Product Tags:

200ml mineral water bottling plant

200ml washing filling capping machine

10000bph washing filling capping machine

Mineral Water PET Bottle 200ml Washing Filling Capping Machine Water Bottling Plant Images
